080 Series Low Input Torque Large Displacement Series Power Steering Units

	发布日期：[2015/1/18 14:57:17] 点击率：[4000] 来源：济宁力科液压有限责任公司

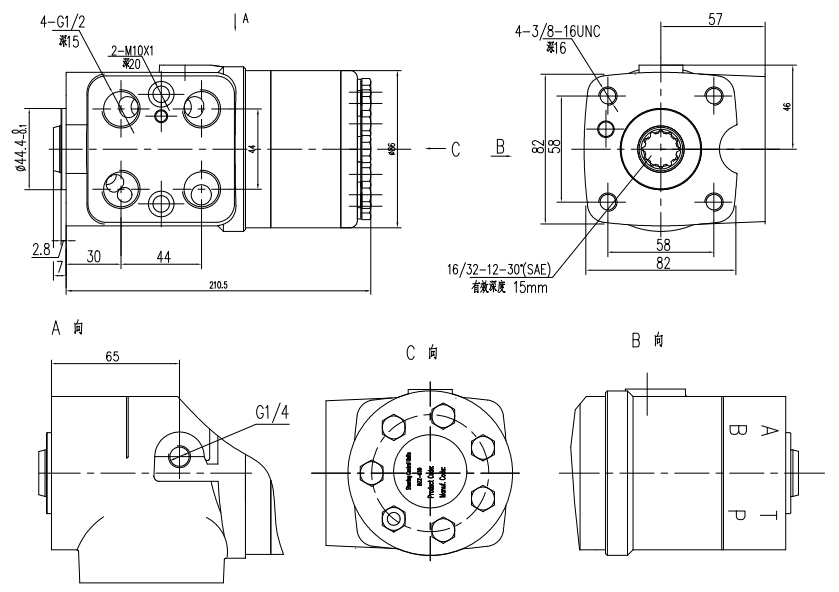

080series --- Standard Series It is load sensing. Typical applications are tractors, combines, lift trucks, wheel loaders and other heavy vehicles. Features The design of valve with optimum gains better characteristics. Low hydraulic noise optimize hydraulic pressure Oil passage The integrated design increase intensity Three basic systems_ open center, closed center and load sensing Main Specification Data Max. system pressure……………16MPa Max. back pressure……………2.1MPa Input torque…………………1.1~1.8Nm Max. system operating temperature……………93°C Recommended oil filtration…………ISO 18/13 080 Dimension and Mounting Data
