FK&FKS Combination Valve Blocks



发布日期:[2015/1/18 14:59:05]    点击率:[4158]   来源:济宁力科液压有限责任公司

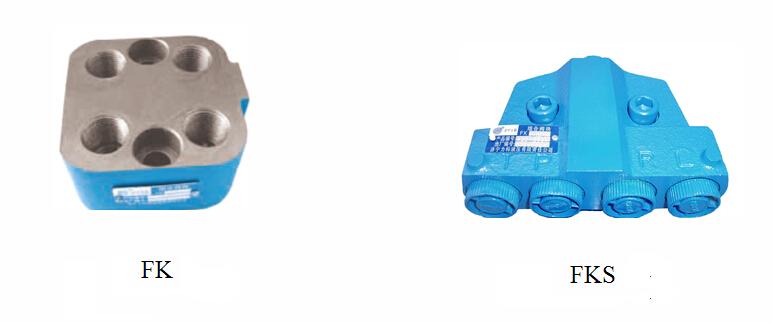

The FK or FKS valve block is bolted on the port face of the PSU directly. Its function is to protect the steering system.

The hydraulic function symbol:

Function of the incorporated valve
Inlet safety valve: limits maximum pressure drop across the PSU to protect the steering circuit.
Cylinder port shock valve: protects hoses against pressure surge created by ground forces on the cylinder axle.
Anti-cavitation valve:  protects steering circuit against vacuum (cavitation) conditions.
Inlet check valve: prevents oil from returning through the PSU when pressure on the cylinder side is greater than the inlet side. It prevents steering wheel kick.
Internal check valve: converts the PSU to a hand operated pump for limited manual steering.
